Notepad++ Chrysalis: Supply-Chain Backdoor Insertion & Dynamic Hooking

Investigate a supply-chain attack using a trojanized Notepad++ update installer to insert dynamic API hooks and establish persistent backdoor access.

Executive Summary

The update.exe binary is a malicious NSIS (Nullsoft Scriptable Install System) installer disguised as a legitimate update executable.

This is consistent with the Chrysalis backdoor used by the Lotus Blossom APT group. The malware uses a legitimate installer

framework to deploy malicious payloads while appearing benign, specifically targeting systems with Notepad++ installations for DLL

hijacking attacks.

Artifacts

File namesha256Description
update.exe
a511be5164dc1122fb5a7daa3eef9467e43d8458425b15a640235796006590c9
NSIS-based dropper for Chrysalis backdoor
[NSIS].nsi
8ea8b83645fba6e23d48075a0d3fc73ad2ba515b4536710cda4f1f232718f53e
NSIS Installation script
BluetoothService.exe
2da00de67720f5f13b17e9d985fe70f10f153da60c9ab1086fe58f069a156924
used for dll sideloading
BluetoothService
77bfea78def679aa1117f569a35e8fd1542df21f7e00e27f192c907e61d63a2e
Encrypted shellcode
log.dll
3bdc4c0637591533f1d4198a72a33426c01f69bd2e15ceee547866f65e26b7ad
Malicious DLL sideloaded by BluetoothService.exe

Analysis of update.exe

PE section

Property.text.rdata.data.ndata.rsrc
SHA-256 Hash
787C8BD338CC402B56AEF79522566487FDABE71002273F1D61CE33D95A2169F0
24F50A92DF2985FBE4E63FDB8AA01B8822DC5B9249ACA403AC13EF300BD19429
BF0018EE8238EC05803110C1D17310D37416BF72548B9912C00F5CECC209D7D0
n/a
E185F0A6AB6E2701D49DCB8763DBB4C68DF3EEE63F10614CE5DA69A8587FF277
Entropy6.4894.9714.174n/a4.605
File Ratio3.89%0.81%0.22%n/a0.44%
Raw Address (Begin)0x000004000x00006E000x000084000x000000000x00008A00
Raw Size27,136 B5,632 B1,536 B0 B3,072 B
Virtual Address0x000010000x000080000x0000A0000x000350000x00045000
Virtual Size26,931 B5,220 B174,104 B65,536 B2,872 B
Section NameVirtual Size (Memory)Raw Size (Disk)EntropyRole in the Infection Chain
.text26,931 B27,136 B6.49Execution Engine: Contains the assembly instructions for the loader. High entropy suggests obfuscated code or an unpacking stub.
.rdata5,220 B5,632 B4.97Reference Library: Stores constants and the Import Address Table (IAT) identifying APIs like CreateFileW.
.data174,104 B1,536 B4.17Landing Zone: Exhibits massive memory expansion (113x). Carves out RAM to host the decrypted log.dll or shellcode.
.ndata65,536 B0 B0.00Ghost Section: Does not exist on disk. Used as a zero-initialized "scratchpad" for writing dynamic instructions during unpacking.
.rsrc2,872 B3,072 B4.60UI/Manifest: Standard resources. Low entropy confirms the 600KB+ main payload is stored in the Overlay, not here.

Linked Libraries

LibraryTypeImport CountDescription
KERNEL32.dllImplicit65Core OS: Base API for memory management, file I/O, and process handling.
USER32.dllImplicit64GUI/Input: Manages windows, menus, and user interaction.
ADVAPI32.dllImplicit12Security: Provides access to the Registry and Service/Token management.
GDI32.dllImplicit8Graphics: Device interface for rendering text and basic shapes.
SHELL32.dllImplicit5Shell: High-level OS functions (file operations, shell execution).
ole32.dllImplicit5COM/OLE: Used for Object Linking and Embedding (common for COM hijacking).
COMCTL32.dllImplicit4UI Controls: Common controls like progress bars and buttons.

IMPORTS

LibraryFunctionOffsetPurpose / Risk
ADVAPI32.dllAdjustTokenPrivileges, OpenProcessToken0x89C4Privilege Escalation: Used to gain admin/system rights.
RegSetValueExW, RegCreateKeyExW0x8982Persistence: Writing to "Run" keys to start on boot.
KERNEL32.dllCreateProcessW, CreateThread0x9368Execution: Launching secondary payloads or shellcode.
WriteFile, CreateFileW, DeleteFileW0x93BCFile I/O: Dropping malicious DLLs or cleaning up tracks.
GetProcAddress, LoadLibraryExW0x9404Evasion: Manually loading DLLs to hide from static analysis.
WaitForSingleObject0x9440Sync: Waiting for a dropped process to finish its task.
USER32.dllSetClipboardData, OpenClipboard0x8E64Stealing: Possible credential/data theft from clipboard.
FindWindowExW, SendMessageW0x8C2AInteraction: Searching for and controlling other windows.
SHELL32.dllShellExecuteExW, SHFileOperationW0x8A8COperations: Executing commands or moving large batches of files.
OLE32.dllCoCreateInstance0x8ACACOM Hijacking: Common technique for persistence or bypassing UAC.

Entry Point Analysis (0x0040358d)

GHIDRA decompilation

This Ghidra decompilation is the entry point stub for a Nullsoft Scriptable Install System (NSIS) executable. In the context of the Chrysalis Backdoor, this code serves as the Stage 1 Loader. Its primary goal is to prepare the environment, bypass basic security checks, and extract the malicious payload to a hidden temporary directory.

C
/* WARNING: Globals starting with '_' overlap smaller symbols at the same address */

void entry(void)

{
  ushort uVar1;
  bool bVar2;
  BOOL BVar3;
  FARPROC pFVar4;
  int iVar5;
  LPWSTR pWVar6;
  short *psVar7;
  LPCWSTR pWVar8;
  WCHAR *pWVar9;
  int *piVar10;
  undefined3 extraout_var;
  undefined *puVar11;
  HANDLE pvVar12;
  WCHAR *pWVar13;
  char *lpString;
  WCHAR WVar14;
  DWORD DVar15;
  HANDLE *TokenHandle;
  int iStack_3f8;
  uint local_3f4;
  wchar_t *local_3f0;
  UINT local_3e8;
  HANDLE pvStack_3e4;
  _TOKEN_PRIVILEGES _Stack_3e0;
  _OSVERSIONINFOW _Stack_3d0;
  uint uStack_2bc;
  undefined4 uStack_2b8;
  SHFILEINFOW SStack_2b4;

  local_3e8 = 0;
  local_3f0 = u_Error_writing_temporary_file._Ma_0040a2d8;
  local_3f4 = 0;
  SetErrorMode(0x8001);
  _Stack_3d0.szCSDVersion[0] = L'\0';
  _Stack_3d0.szCSDVersion[1] = L'\0';
  uStack_2bc = 0;
  uStack_2b8 = 0;
  _Stack_3d0.dwOSVersionInfoSize = 0x11c;
  BVar3 = GetVersionExW(&_Stack_3d0);
  if (BVar3 == 0) {
    _Stack_3d0.dwOSVersionInfoSize = 0x114;
    GetVersionExW(&_Stack_3d0);
    uStack_2b8._0_3_ = CONCAT12(4,(undefined2)uStack_2b8);
    uStack_2bc = CONCAT22(uStack_2bc._2_2_,
                          ~-(ushort)(_Stack_3d0.szCSDVersion[0] != L'S') &
                          _Stack_3d0.szCSDVersion[0xd] + L'￐');
  }
  if (_Stack_3d0.dwMajorVersion < 10) {
    _Stack_3d0.dwBuildNumber = _Stack_3d0.dwBuildNumber & 0xffff;
  }
  _DAT_004347b8 = _Stack_3d0.dwBuildNumber;
  _DAT_004347bc =
       (uint)CONCAT11((undefined1)_Stack_3d0.dwMajorVersion,(undefined1)_Stack_3d0.dwMinorVersion)
       << 0x10 | (uStack_2bc & 0xff) << 8 | uStack_2b8 >> 0x10 & 0xff;
  if ((CONCAT11((undefined1)_Stack_3d0.dwMajorVersion,(undefined1)_Stack_3d0.dwMinorVersion) !=
       0x600) && (pFVar4 = FUN_004069a6(0), pFVar4 != (FARPROC)0x0)) {
    (*pFVar4)(0xc00);
  }
  lpString = "UXTHEME";
  do {
    FUN_00406936(lpString);
    iVar5 = lstrlenA(lpString);
    lpString = lpString + iVar5 + 1;
  } while (*lpString != '\0');
  FUN_004069a6(0xc);
  DAT_00434704 = FUN_004069a6(10);
  pFVar4 = FUN_004069a6(8);
  if ((pFVar4 != (FARPROC)0x0) && (iVar5 = (*pFVar4)(0x1e), iVar5 != 0)) {
    _DAT_004347bc = _DAT_004347bc | 0x80;
  }
  Ordinal_17();
  DAT_004347c0 = OleInitialize((LPVOID)0x0);
  SHGetFileInfoW((LPCWSTR)&DAT_0042aa28,0,&SStack_2b4,0x2b4,0);
  FUN_004065b2((LPWSTR)&DAT_00433700,u_NSIS_Error_0040a2bc);
  pWVar6 = GetCommandLineW();
  FUN_004065b2(&DAT_0043f000,pWVar6);
  DAT_00434700 = 0x400000;
  psVar7 = &DAT_0043f000;
  WVar14 = L' ';
  if (DAT_0043f000 == 0x22) {
    psVar7 = (short *)&DAT_0043f002;
    WVar14 = L'\"';
  }
  pWVar8 = (LPCWSTR)FUN_00405eae(psVar7,WVar14);
  pWVar6 = CharNextW(pWVar8);
  pWVar9 = pWVar6;
  while( true ) {
    WVar14 = *pWVar9;
    if (WVar14 == L'\0') break;
    while (WVar14 == L' ') {
      pWVar9 = pWVar9 + 1;
      WVar14 = *pWVar9;
    }
    iStack_3f8._0_2_ = L' ';
    if (*pWVar9 == L'\"') {
      pWVar9 = pWVar9 + 1;
      iStack_3f8._0_2_ = L'\"';
    }
    pWVar13 = pWVar9;
    if (*pWVar9 == L'/') {
      pWVar13 = pWVar9 + 1;
      if ((*pWVar13 == L'S') && ((pWVar9[2] == L' ' || (pWVar9[2] == L'\0')))) {
        DAT_004347a0 = 1;
      }
      if (((*(int *)pWVar13 == CONCAT22(DAT_0040a2b2,DAT_0040a2b0)) &&
          (*(uint *)(pWVar9 + 3) == (CONCAT22(DAT_0040a2b6,DAT_0040a2b4) | (int)DAT_0040a2b2 >> 0xf)
          )) && ((pWVar9[5] == L' ' || (pWVar9[5] == L'\0')))) {
        local_3f4 = 4;
      }
      if ((*(int *)(pWVar9 + -1) == CONCAT22(DAT_0040a2a6,DAT_0040a2a4)) &&
         (*(uint *)pWVar13 == (CONCAT22(DAT_0040a2aa,DAT_0040a2a8) | (int)DAT_0040a2a6 >> 0xf))) {
        pWVar9[-1] = L'\0';
        FUN_004065b2(&DAT_0043f800,pWVar9 + 3);
        break;
      }
    }
    pWVar9 = (WCHAR *)FUN_00405eae(pWVar13,(WCHAR)iStack_3f8);
    if (*pWVar9 == L'\"') {
      pWVar9 = pWVar9 + 1;
    }
  }
  GetTempPathW(0x400,(LPWSTR)&DAT_00441800);
  iVar5 = FUN_0040355c();
  if (iVar5 == 0) {
    GetWindowsDirectoryW((LPWSTR)&DAT_00441800,0x3fb);
    lstrcatW((LPWSTR)&DAT_00441800,u_\Temp_0040a298);
    iVar5 = FUN_0040355c();
    if (iVar5 == 0) {
      GetTempPathW(0x3fc,(LPWSTR)&DAT_00441800);
      lstrcatW((LPWSTR)&DAT_00441800,(LPCWSTR)&DAT_0040a290);
      SetEnvironmentVariableW(u_TEMP_0040a284,(LPCWSTR)&DAT_00441800);
      SetEnvironmentVariableW((LPCWSTR)&DAT_0040a27c,(LPCWSTR)&DAT_00441800);
      iVar5 = FUN_0040355c();
      if (iVar5 == 0) goto LAB_00403ad8;
    }
  }
  DeleteFileW((LPCWSTR)&DAT_00441000);
  local_3f0 = FUN_004030a9(local_3f4);
  if (local_3f0 != (wchar_t *)0x0) goto LAB_00403ad8;
  if (DAT_0043471c != 0) {
    piVar10 = (int *)FUN_00405eae(&DAT_0043f000,L'\0');
    if ((int *)0x43efff < piVar10) {
      do {
        if ((*piVar10 == CONCAT22(DAT_0040a272,DAT_0040a270)) &&
           (piVar10[1] == (CONCAT22(DAT_0040a276,DAT_0040a274) | (int)DAT_0040a272 >> 0xf))) break;
        piVar10 = (int *)((int)piVar10 + -2);
      } while ((int *)0x43efff < piVar10);
    }
    local_3f0 = u_Error_launching_installer_0040a1e8;
    if (piVar10 < &DAT_0043f000) {
      pvStack_3e4 = (HANDLE)FUN_00405b7d();
      iVar5 = lstrlenW((LPCWSTR)&DAT_00441800);
      FUN_004065b2((LPWSTR)&DAT_00435000,pWVar6);
      if (DAT_0043f800 == 0) {
        FUN_004065b2(&DAT_0043f800,(LPCWSTR)&DAT_00440800);
      }
      uVar1 = 1;
      do {
        iStack_3f8 = 0;
        do {
          while( true ) {
            wsprintfW((LPWSTR)(&DAT_00441800 + iVar5 * 2),u_~nsu%X.tmp_0040a258,(uint)uVar1);
            FUN_004065ef((LPWSTR)&DAT_00437800,*(int *)(DAT_00434710 + 0x120));
            if (pvStack_3e4 == (HANDLE)0x0) {
              DVar15 = FUN_00405b60((LPCWSTR)&DAT_00441800);
            }
            else {
              DVar15 = FUN_00405b06((LPCWSTR)&DAT_00441800);
            }
            if (DVar15 != 0) break;
            SetCurrentDirectoryW((LPCWSTR)&DAT_00441800);
            FUN_00406372((LPCWSTR)&DAT_00441800,(LPCWSTR)0x0);
            BVar3 = CopyFileW((LPCWSTR)&DAT_00442800,(LPCWSTR)&DAT_00437800,1);
            if (BVar3 == 0) goto LAB_00403ad8;
            FUN_00406372((LPCWSTR)&DAT_00437800,(LPCWSTR)0x0);
            FUN_004065ef((LPWSTR)&DAT_00438000,*(int *)(DAT_00434710 + 0x124));
            pvVar12 = FUN_00405b95((LPWSTR)&DAT_00438000);
            if (pvVar12 != (HANDLE)0x0) {
              CloseHandle(pvVar12);
              local_3f0 = (wchar_t *)0x0;
              goto LAB_00403ad8;
            }
            if ((iStack_3f8 != 0) ||
               (puVar11 = FUN_0040690f((LPCWSTR)&DAT_00437800), iStack_3f8 = iStack_3f8 + 1,
               puVar11 != (undefined *)0x0)) goto LAB_00403ad8;
          }
          DVar15 = GetFileAttributesW((LPCWSTR)&DAT_00437800);
          if (((DVar15 & 0x400) != 0) || (BVar3 = DeleteFileW((LPCWSTR)&DAT_00437800), BVar3 == 0))
          break;
          FUN_00405cbe((LPCWSTR)&DAT_00441800,1);
          bVar2 = iStack_3f8 == 0;
          iStack_3f8 = iStack_3f8 + 1;
        } while (bVar2);
        uVar1 = uVar1 + 1;
      } while (uVar1 != 0);
      goto LAB_00403ad8;
    }
    *(undefined2 *)piVar10 = 0;
    pWVar8 = (LPCWSTR)(piVar10 + 2);
    bVar2 = FUN_00405f89(pWVar8);
    if (CONCAT31(extraout_var,bVar2) == 0) goto LAB_00403ad8;
    FUN_004065b2(&DAT_0043f800,pWVar8);
    FUN_004065b2((LPWSTR)&DAT_00440000,pWVar8);
    local_3f0 = (wchar_t *)0x0;
  }
  DAT_004347ac = -1;
  local_3e8 = FUN_00403c84();
LAB_00403ad8:
  FUN_00403baa();
  OleUninitialize();
  if (local_3f0 != (wchar_t *)0x0) {
    FUN_00405c12(local_3f0,0x200010);
                    /* WARNING: Subroutine does not return */
    ExitProcess(2);
  }
  if (DAT_00434794 != 0) {
    TokenHandle = &pvStack_3e4;
    DVar15 = 0x28;
    pvVar12 = GetCurrentProcess();
    BVar3 = OpenProcessToken(pvVar12,DVar15,TokenHandle);
    if (BVar3 != 0) {
      LookupPrivilegeValueW
                ((LPCWSTR)0x0,u_SeShutdownPrivilege_0040a230,&_Stack_3e0.Privileges[0].Luid);
      _Stack_3e0.PrivilegeCount = 1;
      _Stack_3e0.Privileges[0].Attributes = 2;
      AdjustTokenPrivileges(pvStack_3e4,0,&_Stack_3e0,0,(PTOKEN_PRIVILEGES)0x0,(PDWORD)0x0);
    }
    pFVar4 = FUN_004069a6(4);
    if (((pFVar4 != (FARPROC)0x0) && (iVar5 = (*pFVar4)(0,0,0,0x25,0x80040002), iVar5 == 0)) ||
       (BVar3 = ExitWindowsEx(2,0x80040002), BVar3 == 0)) {
      FUN_0040140b(9);
    }
  }
  if (DAT_004347ac != -1) {
    local_3e8 = DAT_004347ac;
  }
                    /* WARNING: Subroutine does not return */
  ExitProcess(local_3e8);
}

Function Overview

This is the main entry point of the malicious NSIS installer. It orchestrates the entire infection chain from initialization to payload deployment.

1. Initialization & OS Detection (0040358d - 0040367b)

NASM
0040358d: SUB ESP,0x3f8           ; Allocate large stack frame
00403596: PUSH 0x8001
004035a0: CALL SetErrorMode       ; Disable critical error dialogs
▪Version Detection: Uses GetVersionExW to determine Windows version
▪Compatibility Flags: Sets flags based on OS version (Win9x vs NT)
▪DLL Preloading: Loads UXTHEME, USERENV, SETUPAPI, APPHELP, PROPSYS, CRYPTBASE, OLEACC, NTMARTA
NASM
00403680: MOV ESI,0x4082a8        ; String table start
00403680: CALL LoadLibraryExW     ; Load each DLL in loop

2. Command Line Parsing (00403705 - 0040385f)

NASM
004036ff: CALL GetCommandLineW
0040370a: PUSH EBX                ; Command line buffer
0040370b: CALL lstrcpyW

Parsed Arguments:

▪/S → Silent mode (DAT_004347a0 = 1)
▪/NCRC → Skip CRC integrity check
▪/D=path → Custom install directory
NASM
00403773: CMP word ptr [ECX],0x2f ; Check for '/' switch
00403787: MOV dword ptr [0x004347a0],0x1  ; Set silent mode

3. Temp Directory Creation (00403865 - 004038d1)

NASM
00403865: PUSH ESI                ; Buffer 0x441800
0040386b: PUSH 0x400
00403870: CALL GetTempPathW       ; Get %TEMP% path
00403872: CALL FUN_0040355c       ; Validate/create temp dir

Fallback Logic:

1.Try %TEMP%
2.Fallback to Windows\Temp
3.Create custom temp with SetEnvironmentVariableW

4. Integrity Verification (004038e0 - 004038eb)

NASM
004038dc: PUSH dword ptr [ESP + 0x14]  ; CRC check flag
004038e0: CALL FUN_004030a9       ; Verify installer integrity
004038e5: CMP EAX,EBP             ; Check if failed
004038eb: JNZ error_handler       ; Jump to error if failed

Key Check: If CRC check fails, displays error:

"Installer integrity check has failed. Common causes include incomplete download and damaged media..."

5. Self-Extraction Logic (004038f1 - 00403ad8)

If integrity passes, extracts payload:

NASM
004039a5: CALL FUN_00405b7d       ; Check if admin/elevated
004039dc: PUSH EBP
004039dd: PUSH 0x40a258           ; Format string "~nsu%X.tmp"
004039e8: CALL wsprintfW          ; Generate temp filename
00403a02: CALL CreateDirectoryW   ; Create extraction directory
00403a89: CALL CopyFileW          ; Copy self to temp
00403ab3: CALL CreateProcessW     ; Execute extracted payload

6. Cleanup & Exit (00403ad8 - 00403ba4)

NASM
00403ad8: CALL FUN_00403baa       ; Cleanup resources
00403add: CALL OleUninitialize    ; COM cleanup
00403ae3: CMP dword ptr [ESP + 0x18],EBP
00403ae7: JZ exit_normal
00403aea: PUSH 0x200010
00403aef: PUSH error_string
00403af3: CALL MessageBoxIndirectW ; Show error dialog

Key Data References

AddressContentPurpose
0x0040a2d8Error string"Error writing temporary file..."
0x0040a2bcWindow title"NSIS Error"
0x0040a050Integrity error"Installer integrity check has failed..."
0x0040a1e8Launch error"Error launching installer"
0x0040a258Temp pattern"~nsu%X.tmp"
0x00434710Header ptrNSIS installer header
0x00434714OffsetCompressed data offset

Behavior Flowchart

NASM
┌─────────────────┐
│   Entry Point   │
└────────┬────────┘
         ▼
┌─────────────────┐
│  OS Version     │
│  Detection      │
└────────┬────────┘
         ▼
┌─────────────────┐
│  Parse Command  │
│  Line Args      │
└────────┬────────┘
         ▼
┌─────────────────┐
│  Create TEMP    │
│  Directory      │
└────────┬────────┘
         ▼
┌─────────────────┐     ┌─────────────┐
│  CRC Integrity  │────▶│  Error Msg  │
│  Check          │Fail │  & Exit     │
└────────┬────────┘     └─────────────┘
         │Pass
         ▼
┌─────────────────┐
│  Extract to     │
│  ~nsu%X.tmp     │
└────────┬────────┘
         ▼
┌─────────────────┐
│  Execute        │
│  Payload        │
└────────┬────────┘
         ▼
┌─────────────────┐
│  Cleanup & Exit │
└─────────────────┘

This is a standard NSIS installer stub - it extracts embedded compressed data to a temp file and executes it. No malicious network activity or persistence mechanisms observed in the entry point.

Key Malicious Behaviors

1. File System Operations

Dropped Files

FileSizePurposeWrite Operations
BluetoothService.exe950,592 bytesMain backdoor40 writes
log.dll85,504 bytesC2/logging module3 writes
BluetoothService201,096 bytesConfiguration10 writes

Installation Directory:

TELEMETRY / DISASSEMBLY
C:\\Users\\[USER]\\AppData\\Roaming\\Bluetooth\\

2. Process Creation

Execution Chain:

TELEMETRY / DISASSEMBLY
update.exe (Parent)
    └─> BluetoothService.exe (Child Process)
        Command Line: "C:\\Users\\[USER]\\AppData\\Roaming\\Bluetooth\\BluetoothService.exe"
        Purpose: Backdoor execution, persistence, C2 communication
Screenshot 2026-02-03 at 9.38.56 PM.png
Figure: Screenshot 2026-02-03 at 9.38.56 PM.png Click to zoom ↗

API Used: CreateProcessW

3. Anti-Analysis & Evasion Techniques

A. Delayed DLL Loading (T1497.003)

Confirmed Delays:

DLLLoad DelayPurpose
uxtheme.dll~283msUI theming
userenv.dll~293msUser environment
setupapi.dll~313msSetup API

Evasion Purpose:

▪Evades time-based sandbox detection
▪Reduces initial memory footprint
▪MITRE ATT&CK: T1497.003 - Virtualization/Sandbox Evasion (Time Based)

B. Error Suppression

C
SetErrorMode(0x8001);  // SEM_FAILCRITICALERRORS | SEM_NOOPENFILEERRORBOX
▪Suppresses critical error dialogs
▪Enables silent execution without user alerts

C. Deceptive Naming (T1036.005)

Masquerading as Bluetooth Service:

▪Directory: Bluetooth (mimics Windows Bluetooth folder)
▪Executable: BluetoothService.exe (mimics legitimate service)
▪DLL: log.dll (generic logging library name)

4. Registry Operations

Confirmed Registry Queries (50+ operations):

Anti-Analysis Checks:

TELEMETRY / DISASSEMBLY
HKLM\\System\\CurrentControlSet\\Control\\SafeBoot\\Option
    → Result: NAME NOT FOUND (not in Safe Mode)

HKLM\\System\\CurrentControlSet\\Control\\Srp\\GP\\DLL
    → Result: NAME NOT FOUND (no Software Restriction Policies)

HKLM\\SOFTWARE\\Policies\\Microsoft\\Windows\\Safer\\CodeIdentifiers
    → Result: SUCCESS (policies exist)
    → AuthenticodeEnabled: 0 (code signing disabled)

OS Fingerprinting:

TELEMETRY / DISASSEMBLY
HKLM\\System\\CurrentControlSet\\Control\\MUI\\UILanguages
    → en-GB (Type: 274)
    → en-US (Type: 273)
    → zh-CN (Type: 146) - Chinese language pack detected

Reconnaissance (No Persistence Created by Dropper):

TELEMETRY / DISASSEMBLY
HKCU\\Software\\Microsoft\\Windows\\CurrentVersion\\Explorer\\Shell Folders
HKLM\\System\\CurrentControlSet\\Services\\bam\\State\\UserSettings\\...

Note: The dropper (update.exe) does NOT create persistence. Persistence is handled by the child process (BluetoothService.exe).

Indicators of Compromise (IOCs)

File-Based IOCs

Dropped Files:

TELEMETRY / DISASSEMBLY
C:\\Users\\[USER]\\AppData\\Roaming\\Bluetooth\\BluetoothService.exe (950,592 bytes)
C:\\Users\\[USER]\\AppData\\Roaming\\Bluetooth\\log.dll (85,504 bytes)
C:\\Users\\[USER]\\AppData\\Roaming\\Bluetooth\\BluetoothService (201,096 bytes)

Process-Based IOCs

Parent Process:

TELEMETRY / DISASSEMBLY
Process: update.exe
Command Line: "C:\\Users\\[USER]\\Desktop\\update.exe"
Exit Code: 2
Execution Time: ~0.32 seconds

Child Process:

TELEMETRY / DISASSEMBLY
Process: BluetoothService.exe
Parent: update.exe
Command Line: "C:\\Users\\[USER]\\AppData\\Roaming\\Bluetooth\\BluetoothService.exe"
Purpose: Backdoor, persistence, C2

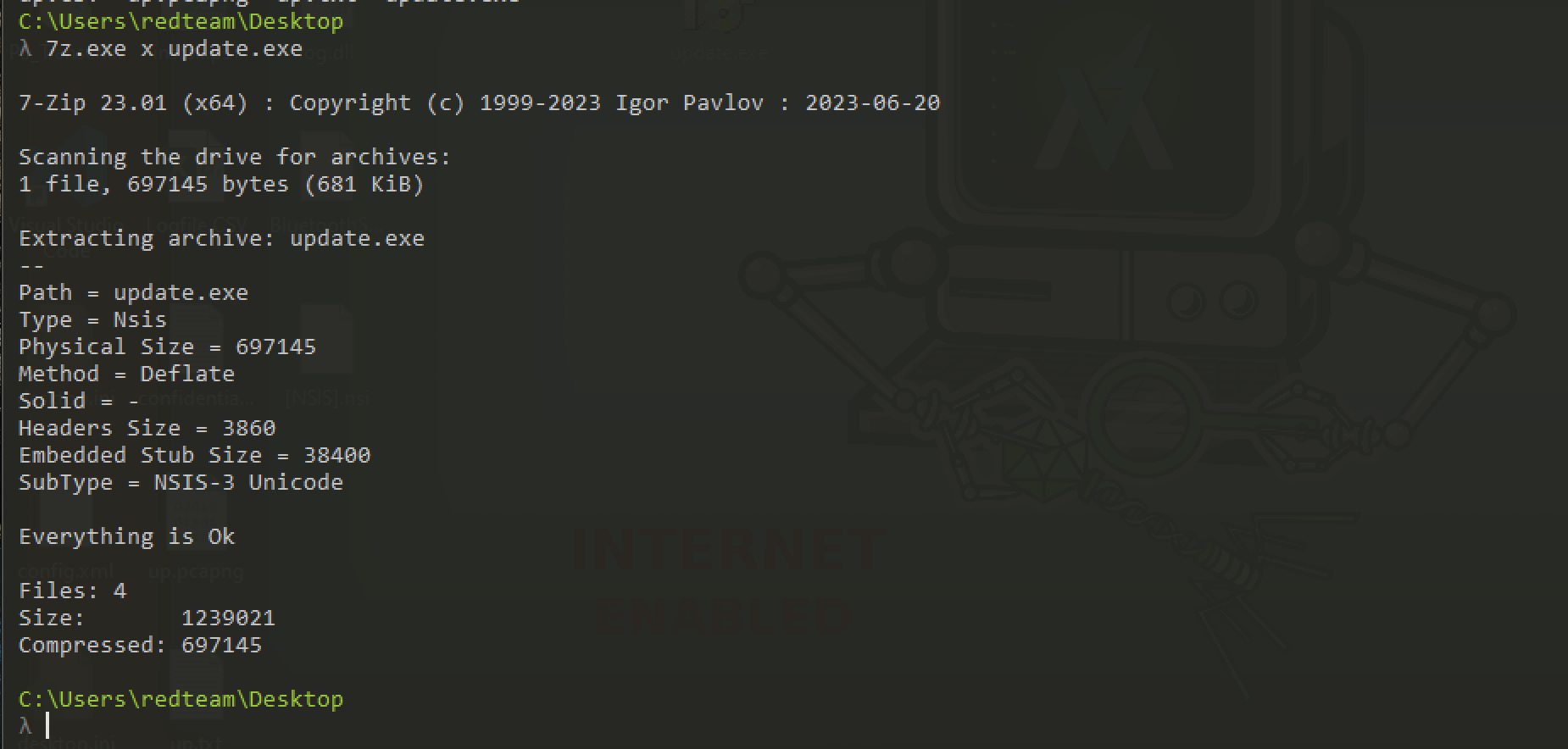

Extracting Files from NSIS Installer

Figure: extraction.png Click to zoom ↗
[NSIS].nsi8ea8b83645fba6e23d48075a0d3fc73ad2ba515b4536710cda4f1f232718f53eNSIS Installation script
BluetoothService.exe
2da00de67720f5f13b17e9d985fe70f10f153da60c9ab1086fe58f069a156924
used for dll sideloading
BluetoothService
77bfea78def679aa1117f569a35e8fd1542df21f7e00e27f192c907e61d63a2e
Encrypted shellcode
log.dll
3bdc4c0637591533f1d4198a72a33426c01f69bd2e15ceee547866f65e26b7ad
Malicious DLL sideloaded by BluetoothService.exe

DLL Sideloading

Soon after the launch of BluetoothService.exe, a renamed legitimate Bitdefender Submission Wizard misused for DLL sideloading, a harmful log.dll was positioned next to the executable, leading it to load the malicious library instead of the genuine one. Bitdefender Submission Wizard calls two exported functions from log.dll: LogInit and LogWrite

LogInit and LogWrite

▪LogInit loads the BluetoothService into the memory of the active process.
▪LogWrite aims for a more advanced objective – to decrypt and run the shellcode

log.dll

File Properties

PE SECTIONS

NameVirtual AddressVirtual SizeRaw SizeEntropyMD5Chi2
.text409651379517126.58
f6e295c14004440d1d9586e0d6b85d22
272840.41
.rdata5734425232256004.89
b467d967d821cdb54feee2e13f588e09
1208038
.data86016498025602.39
5ff27e9c2fb8df99c65e9a9f9cf203c9
347264.19
.rsrc942082485122.52
fbbc60d79f940d1f156569abcf31d5f5
61552
.reloc98304394440966.41
d3b6586b2f78ae82cfade52afa990fc4
21132

IMPORTS

CategoryAPI Function(s)Role in the Infection Chain
Payload ExtractionCreateFileW, WriteFile, SetFilePointerExUsed to open and read the encrypted BluetoothService blob from disk.
Evasion & StealthGetProcAddress, LoadLibraryExW, FreeLibraryHigh Risk: Allows the DLL to manually find and execute system functions without listing them in the Import Table, bypassing static scans.
Anti-AnalysisIsDebuggerPresent, SetUnhandledExceptionFilterChecks if a malware researcher is watching the process. Suppresses crash alerts to stay silent.
Memory ManagementHeapAlloc, HeapFree, GetProcessHeapAllocates the RAM necessary to hold the decrypted Chrysalis shellcode before it is executed.
Process/ThreadGetCurrentProcess, TerminateProcess, ExitProcessManages the execution flow within the legitimate BluetoothService.exe host.
SynchronizationEnterCriticalSection, LeaveCriticalSectionEnsures that the multi-threaded decryption process doesn't crash the host application.
OffsetFunction NameAnalysis / Role
0x10001A40LogInitInitialization: Sets up the logging environment or prepares the mutex to ensure only one instance is running.
0x10001B20LogWriteStatus Reporting: Used by the malware to track its own progress or exfiltrate small strings/errors to a local file or C2.
0x100014E0API Hash ResolverEvasion: Instead of importing functions like VirtualAlloc by name, it searches for them using pre-calculated hashes to hide from static analysis tools.
0x10001640Shellcode DecryptorExecution: The "Business End." This routine decrypts the final encrypted payload (likely the Chrysalis backdoor) before injecting it into a target process.

API Hashing (FNV-1a Algorithm) The DLL uses dynamic API resolution to hide imports:

▪Hash algorithm: FNV-1a with custom mixing
▪Constants: 0x811c9dc5 (offset basis), 0x1000193 (prime)

Identified API Hashes:

HashLikely APIPurpose
0xe2f5e21bGetModuleFileNameAGets current module path
0xfe1a4618CreateFileMappingCreates memory-mapped file
0x53faaa4MapViewOfFileMaps file into memory
0xd6410922CloseHandleCloses handles
0x47c204caVirtualAlloc/VirtualProtectMemory allocation

Entry Point (0x100028d7)

Function Signature

C
void __stdcall entry(HINSTANCE hinstDLL, DWORD fdwReason, LPVOID lpvReserved)

Disassembly

NASM
100028d7: PUSH EBP
100028d8: MOV EBP, ESP
100028da: CMP dword ptr [EBP+0xc], 0x1    ; Check if fdwReason == DLL_PROCESS_ATTACH
100028de: JNZ 0x100028e5                   ; Skip if not process attach
100028e0: CALL 0x10002de2                  ; __security_init_cookie()
100028e5: PUSH dword ptr [EBP+0x10]        ; lpvReserved
100028e8: PUSH dword ptr [EBP+0xc]         ; fdwReason
100028eb: PUSH dword ptr [EBP+0x8]         ; hinstDLL
100028ee: CALL 0x100027a1                  ; dllmain_dispatch()
100028f3: ADD ESP, 0xc
100028f6: POP EBP
100028f7: RET 0xc

Decompiled code

C

void entry(HINSTANCE hinstDLL, DWORD fdwReason, LPVOID lpvReserved) {
    // Initialize stack cookie only on DLL_PROCESS_ATTACH
    if (fdwReason == DLL_PROCESS_ATTACH) {
        __security_init_cookie();
    }

    // Call main DLL dispatcher
    dllmain_dispatch(hinstDLL, fdwReason, lpvReserved);
}

Purpose

▪Entry point for the DLL when loaded by Windows
▪Initializes stack security cookie on first load (anti-exploitation)
▪Dispatches to main DLL handler

DllMain Dispatcher (0x100027a1)

Function Signature

C
int __cdecl dllmain_dispatch(HINSTANCE hinstDLL, DWORD fdwReason, LPVOID lpvReserved)

Decompiled Code

C
int dllmain_dispatch(HINSTANCE hinstDLL, DWORD fdwReason, LPVOID lpvReserved) {
    int result;

    // Handle DLL_PROCESS_DETACH with no active references
    if ((fdwReason == DLL_PROCESS_DETACH) && (DAT_1001595c < 1)) {
        return 0;
    }

    // Handle DLL_PROCESS_ATTACH or DLL_THREAD_ATTACH
    if ((fdwReason == DLL_PROCESS_ATTACH) || (fdwReason == DLL_THREAD_ATTACH)) {
        // Call raw DllMain
        result = dllmain_raw(hinstDLL, fdwReason, lpvReserved);
        if (result == 0) return 0;

        // Initialize CRT (C Runtime)
        result = dllmain_crt_dispatch(hinstDLL, fdwReason, lpvReserved);
        if (result == 0) return 0;
    }

    // Call custom initialization (always returns 1)
    result = FUN_10001c50();  // Returns 1

    // Handle failed DLL_PROCESS_ATTACH
    if ((fdwReason == DLL_PROCESS_ATTACH) && (result == 0)) {
        FUN_10001c50();
        dllmain_crt_process_detach(lpvReserved != NULL);
        dllmain_raw(hinstDLL, DLL_PROCESS_DETACH, lpvReserved);
    }

    // Handle DLL_PROCESS_DETACH or DLL_THREAD_DETACH
    if ((fdwReason == DLL_PROCESS_DETACH) || (fdwReason == DLL_THREAD_DETACH)) {
        result = dllmain_crt_dispatch(hinstDLL, fdwReason, lpvReserved);
        if (result != 0) {
            result = dllmain_raw(hinstDLL, fdwReason, lpvReserved);
        }
    }

    return result;
}

Purpose

▪Main dispatcher for DLL lifecycle events
▪Handles all 4 DLL reasons:
▪DLL_PROCESS_ATTACH (1) - DLL loaded into process
▪DLL_THREAD_ATTACH (2) - New thread created
▪DLL_THREAD_DETACH (3) - Thread exiting
▪DLL_PROCESS_DETACH (0) - DLL unloading

Raw DllMain (0x100028ac)

Decompiled Code

C
int dllmain_raw(HINSTANCE hinstDLL, DWORD fdwReason, LPVOID lpvReserved) {
    void *custom_dllmain = PTR_1000e198;

    if (custom_dllmain == NULL) {
        return 1;  // No custom DllMain, success
    }

    // Call guard_check_icall (CFG - Control Flow Guard)
    (*PTR_guard_check_icall_1000e110)(hinstDLL, fdwReason, lpvReserved);

    // Call custom DllMain if present
    return (*custom_dllmain)();
}

Purpose

▪Calls custom DllMain if one exists (PTR_1000e198)
▪In this DLL, PTR_1000e198 is NULL, so no custom DllMain
▪Uses Control Flow Guard (CFG) for security

CRT Process Attach (0x100025ea)

Decompiled Code

C
intdllmain_crt_process_attach(HINSTANCEhinstDLL, LPVOIDlpvReserved) {
// Initialize CRT
if (!__scrt_initialize_crt(0)) {
return0;
    }

// Acquire startup lock
__scrt_acquire_startup_lock();

// Check if already initialized
if (DAT_10015938!=0) {
// Already initialized - error
abort();
    }

    DAT_10015938=1;  // Mark as initializing

// Before-initialize callback
if (!__scrt_dllmain_before_initialize_c()) {
goto cleanup;
    }

// Initialize runtime checks
_RTC_Initialize();

// Initialize stdio options
__scrt_initialize_default_local_stdio_options();

// Run C initializers (global constructors)
if (_initterm_e(&DAT_1000e120,&DAT_1000e130)!=0) {
goto cleanup;
    }

// After-initialize callback
if (!__scrt_dllmain_after_initialize_c()) {
goto cleanup;
    }

// Run C++ initializers
_initterm(&DAT_1000e114,&DAT_1000e11c);

    DAT_10015938=2;  // Mark as fully initialized

// Increment reference count
    DAT_1001595c++;

return1;

cleanup:
__scrt_release_startup_lock();
return0;
}

Purpose

▪Initializes C Runtime Library (CRT)
▪Runs global constructors (C++ static initializers)
▪Sets up stdio, heap, exception handling
▪Increments reference counter (DAT_1001595c)

LogInit Function (Export #5 at 10001a40)

Purpose: Initialize memory mapping for payload injection

C
void LogInit(void)
{
  // Security cookie check (stack protection)
  local_c = DAT_10015008 ^ (uint)auStack_11c;

  // Clear 260-byte buffer (MAX_PATH)
  _memset(local_118, 0, 0x104);

  // [1] GetModuleFileNameA - Get current DLL path
  // Hash: 0xe2f5e21b (-0x1d0a1de5 signed)
  pcVar2 = (code *)FUN_100014e0(DAT_1001635c, -0x1d0a1de5);
  (*pcVar2)();  // Returns path to log.dll

  // [2] Path string manipulation (anti-analysis)
  // Finds end of string and clears last 4 characters
  pcVar1 = &stack0xfffffedc;
  do {
    pcVar3 = pcVar1;
    pcVar1 = pcVar3 + 1;
  } while (*pcVar3 != '\0');
  pcVar3[-4] = '\0';  // Truncates ".dll" from filename

  // [3] CreateFileMappingA - Create shared memory section
  // Hash: 0xfe1a4618 (-0x1e5b9e8 signed)
  pcVar2 = (code *)FUN_100014e0(DAT_1001635c, -0x1e5b9e8);
  uVar4 = (*pcVar2)(0, 0x200000, ...);  // 2MB section

  // [4] MapViewOfFile - Map section into process memory
  // Hash: 0x53faaa4
  pcVar2 = (code *)FUN_100014e0(DAT_1001635c, 0x53faaa4);
  (*pcVar2)(0x200000, DAT_10016360, uVar4);

  // [5] CloseHandle - Close section handle
  // Hash: 0xd6410922 (-0x29bef6de signed)
  pcVar2 = (code *)FUN_100014e0(DAT_1001635c, -0x29bef6de);
  (*pcVar2)(uVar4);

  // Verify stack cookie
  FUN_1000220e(uStack_4c ^ (uint)&uStack_15c);
}

LogWrite Function (Export #19 at 10001b20)

Purpose: Allocate executable memory and launch payload

C
void LogWrite(void)
{
  // Security cookie check
  local_c = DAT_10015008 ^ (uint)&uStack_78;

  // [1] VirtualAlloc - Allocate RWX memory (2MB)
  // Hash: 0x47c204ca
  // Parameters on stack:
  //   - Size: 0x200000 (2,097,152 bytes)
  //   - Protection: 0x40 (PAGE_EXECUTE_READWRITE)
  local_74 = 0x40;
  pcVar1 = (code *)FUN_100014e0(DAT_1001635c, 0x47c204ca);
  (*pcVar1)(0x40, 0x200000);

  // [2] Secondary initialization
  // Sets up additional structures, decryption keys
  FUN_10001640();

  // [3] Hardcoded PE structure layout
  // These values describe a PE file structure:
  uStack_34 = 0x2c5d0;    // Section RVA (0x2C5D0)
  uStack_38 = 0x31000;    // Section virtual size (0x31000)
  uStack_40 = 0x400000;   // Preferred image base (0x400000)
  uStack_3c = 0;          // Reserved

  uStack_78 = 0x1000;     // Section alignment (4KB)
  uStack_5c = 0x23000;    // Import table RVA (0x23000)
  uStack_58 = 0x8e00;     // Import table size (0x8E00)

  uStack_70 = 0x2d000;    // Relocation RVA (0x2D000)
  uStack_54 = 0xc00;      // Relocation size (0xC00)
  uStack_6c = 0x30000;    // Resource RVA (0x30000)
  uStack_50 = 0x200;      // Resource size (0x200)

  uStack_68 = 0x31000;    // Export RVA (0x31000)
  uStack_4c = 0x1c00;     // Export size (0x1C00)

  // [4] Callback setup (for payload initialization)
  pcStack_30 = DAT_10016360;           // Main payload entry
  pcStack_2c = FUN_100014c0;           // Callback #1
  pcStack_28 = FUN_100014d0;           // Callback #2

  // [5] Execute payload
  // Calls the entry point with structured parameters
  (*DAT_10016360)(&stack0xffffff80);

  // Verify stack cookie
  FUN_1000220e(uStack_1c ^ (uint)&pcStack_88);
}

Observations

AspectLogInitLogWrite
Memory OperationFile mapping (shared section)Virtual allocation (private)
Size2MB (0x200000)2MB (0x200000)
PurposeCreate shared memory blockAllocate executable payload space
API UsedCreateFileMappingA + MapViewOfFileVirtualAlloc
ProtectionRead/WriteExecute/Read/Write (0x40)

Execution Flow:

1.LogInit → Creates memory-mapped file (shared memory)
2.LogWrite → Allocates RWX memory, sets up PE structure, jumps to payload

The payload entry point is at DAT_10016360 - this global variable holds the address of the decrypted payload code.

The Trigger - LogWrite (0x10001B20)

Shellcode Decryptor (0x10001640) - Custom LCG Stream Cipher

Key Derivation (FUN_10001000 at 0x10001000):

▪Takes first 256 bytes of log.dll itself as input
▪Computes FNV-1a hash (constants: 0x811c9dc5, 0x1000193)
▪Applies transformations: (hash >> 0xf ^ hash) * -0x7a143595, then >> 0xd ^ result
▪Result stored in DAT_10016354 - key is unique to this DLL sample

Key Schedule (0x10001640):

C
// Build 32-byte keystream
for i = 0 to 0x1f:
  key[i] = (i * 'U') ^ derived_key[i % keylen]
  key[i] = key[i-1] + key[i] ^ 0xaa

Decryption Algorithm (FUN_10001270 at 0x10001270):

C
LCG constants (classic glibc):
- Multiplier: 0x19660d
- Increment: 0x3c6ef35f

State update: state = state * 0x19660d + 0x3c6ef35f

Per-byte decryption:
  S' = SBOX[byte]               // Substitution
  S' = (S' >> 3 | S' << 5)      // ROL5 (rotate left 5)
  plaintext = S' ^ (state byte) // XOR with LCG output

Payload Loading & Execution Transfer

Execution Flow:

1.LogWrite allocates RWX memory (2MB) via VirtualAlloc at 0x10001b4c-0x10001b60
2.Calls decryptor at 0x10001b62: CALL 0x10001640
3.Transfers control at 0x10001c25: CALL EAX (EAX = DAT_10016360)

BluetoothService.exe

VERDICT: Legitimate Bitdefender Installer (Hijacked)

Certificate Information

▪Signed by: Bitdefender SRL (Bucharest)
▪Issuer: DigiCert Assured ID Code Signing CA
▪Valid: 2019-2020
▪Product: DEVSUP CLINSTALLER

The Hijacking Mechanism (FUN00404760 @ 0x00404760)

This is where the DLL Hijacking occurs:

C
BluetoothService.exe:0x00404760-0x0040487a
// 1. Get current executable path
GetModuleFileNameW(..., lpFilename, ...);

// 2. Replace filename with "log.dll"
_wcscpy_s(_Dst, ..., L"\\log.dll");

// 3. Load the malicious DLL
pHVar2 = LoadLibraryW((LPCWSTR)lpFilename);  // Loads malicious log.dll

// 4. Call LogInit - THIS TRIGGERS THE PAYLOAD
pFVar3 = GetProcAddress((HMODULE)*param_1,"LogInit");
(*pFVar3)();  // Malicious code executes here

// 5. Also resolves LogWrite (which executes the backdoor)
pFVar3 = GetProcAddress((HMODULE)*param_1,"LogWrite");
param_1[10] = (int)pFVar3;

Attack Chain Summary

1.update.exe (NSIS installer) extracts files including:
▪BluetoothService.exe (legitimate Bitdefender installer)
▪log.dll (malicious payload loader)
2.BluetoothService.exe runs, attempts to load logging functionality
3.Loads log.dll from same directory (DLL search order hijacking)
4.LogInit/LogWrite exported functions are called
5.log.dll decrypts and executes the encrypted payload from BluetoothService file (200KB)

Why This Works

▪The attackers replaced the legitimate log.dll with their malicious version
▪The installer is genuinely signed by Bitdefender - not tampered with
▪The malware uses the legitimate installer as the loader
▪No exploits needed - pure social engineering + DLL hijacking

IOCs

▪File: log.dll (side-loaded next to legitimate installer)
▪File: BluetoothService (encrypted payload, ~200KB)
▪Behavior: LoadLibraryW("log.dll") followed by GetProcAddress("LogInit")
▪From wireshark
NASM
    Line 17: DNS query for api.skycloudcenter.com (A record)
    Line 18: DNS query for api.skycloudcenter.com (AAAA record)
    Line 25: DNS response: api.skycloudcenter.com → 127.0.0.1
    Line 26: DNS response: api.skycloudcenter.com → 64:ff9b::7f00:1
    Line 255: DNS query for api.skycloudcenter.com (A record)
    Line 256: DNS query for api.skycloudcenter.com (AAAA record)
    Line 258: DNS response: api.skycloudcenter.com → 127.0.0.1
    Line 259: DNS response: api.skycloudcenter.com → 64:ff9b::7f00:1
▪Network

Domain:

▪api[.]skycloudcenter[.]com

IP Addresses:

▪102.47.123.65 (Primary C2 - Port 7035)

Ports:

▪7035/TCP (Non-standard C2 port)
Copied
